Specifications

What's inside.

The full sheet: silicon, standards and the physical object. Part numbers included, because you should be able to look everything up. Anything not yet in the dev-unit firmware is marked.

THE BOARDMODEL N°01 · ANNOTATED

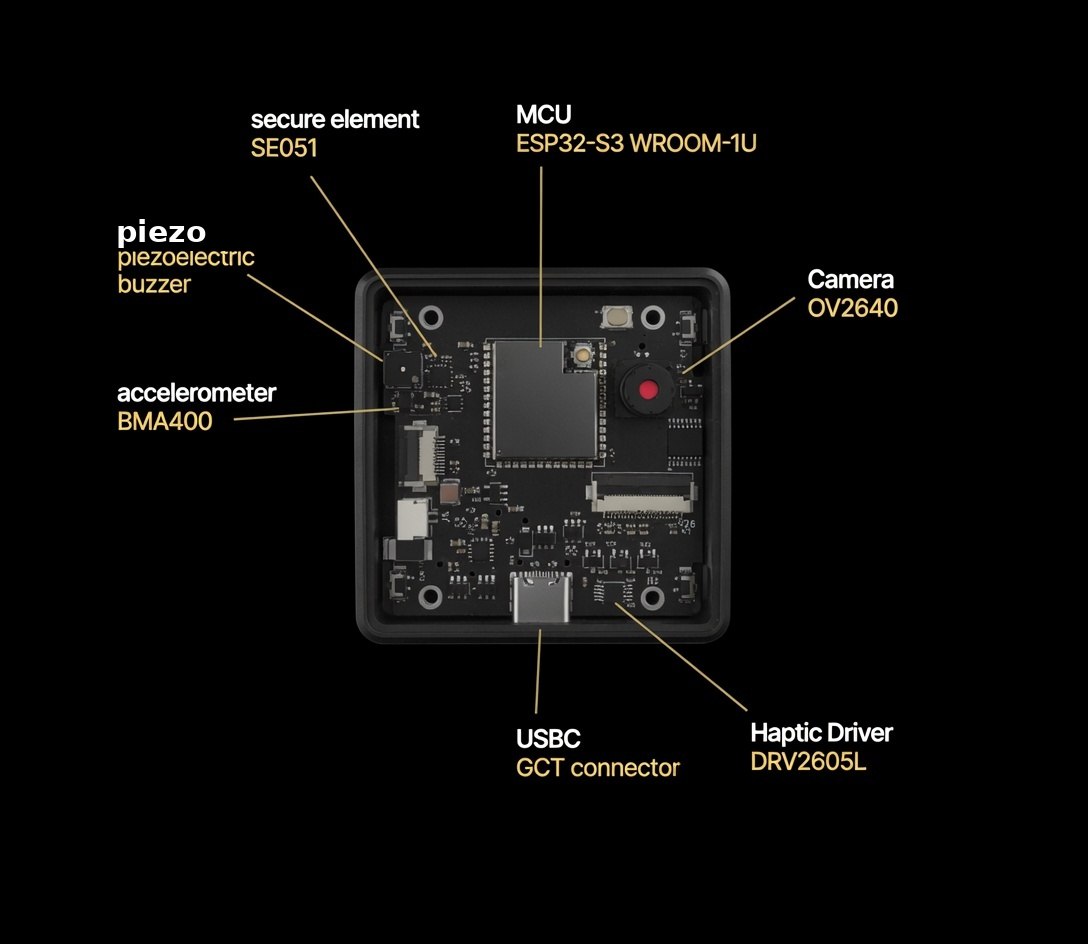

Earlier Favilla KEY main board, annotated: ESP32-S3 WROOM-1U MCU, NXP SE051 secure element, OV2640 camera, BMA400 accelerometer, piezo buzzer, DRV2605L haptic driver, USB-C connector
The main board of an earlier prototype (model N°01). The current board adds the vault processor, the battery monitor and a different accelerometer. A new photo follows with the production run.

Core silicon

Main processor
Espressif ESP32-S3 (WROOM-1U module, external antenna)Dual-core Xtensa LX7 @ 240 MHz · runs the screen, camera, Wi-Fi and the phone app · holds no key after setup
Secure element
NXP SE051 · Common Criteria EAL 6+ with AVA_VAN.5The certification is the chip's, not the whole device's · holds the outer layer of every key and the device attestation key · on-chip PIN verification with retry counters · TRNG · holds the door latch
Vault processor
ST STM32G0, no radio, no network stackThe only place your Nostr key and Bitcoin seed are opened and used · fixed-length commands only, no parser · anti-exfil signing · readout lock to be set on production units · how it works
Camera
OmniVision OV2640, fixed-focus lens tuned for QR captureOn-device QR decode for air-gapped signing and pairing · one of the two seed entropy sources
Display
240 × 240 colour TFT (ST7789) behind cover glass
Motion
ST LIS2DW12 accelerometerDrives the optional motion lock (off by default; turn it on in Settings)
Feedback
DRV2605L haptic driver + piezo buzzerYou feel and hear every confirmation
Controls
Four tactile buttons, machined brassThe two left buttons held together cut the battery to both processors in hardware: a true power cycle, not a software reboot. On USB power, unplug first

Power & connectivity

Battery
500 mAh LiPo · TI BQ24075 power-path charging · TI INA232 battery monitorAuto-sleep by default · hours of active use, about a week on standby · gauge readable at Settings › Device › Battery
USB
USB-C (data + power)Charging and wired firmware updates · USB security-key and keyboard modes come with the Vault, in testing
WiFi
2.4 GHz b/g/n · own access-point modeNostr door only · away from home the KEY runs its own short-range hotspot with a per-device password · transmit power capped low · never started in the Bitcoin or Vault doors
Bluetooth
Bluetooth LE · in testing, comes with the VaultOff unless you turn it on · links only to a paired Favilla app, or acts as a keyboard for typing logins · a Bluetooth-only mode of the Nostr door with Wi-Fi never started · never started in the Bitcoin door

Keys & cryptography

Recovery
One BIP-39 phrase (12 or 24 words), optional BIP-39 passphraseNostr identity derives via NIP-06 · Bitcoin via BIP-84 (single-sig) and BIP-48 (multisig) · passphrase at setup or restore, up to 100 characters, typed or scanned · baked in, or asked at each Bitcoin session, up to five per power-on (any number of wallets from one set of words) · existing nsec import supported
Entropy
Your choice at setup: SE051 TRNG XOR camera sensor, or your own dice rollsTwo chips: both 16 × 16 grids shown on screen, seed = SHA-256 of their XOR, recheck it at Seed check · dice: SHA-256 of 50 or 99 rolls, reproducible off-device · nothing else is mixed in · setup runs with the radio off
At rest
AES-256 ciphertext, wrapped twice: outer key inside the SE051, inner key inside the vault processorNostr key stored inside the SE051 · seed stored in a write-once page on the vault processor · the main chip's flash holds no key material
PINs
One per door: Nostr PIN (identity, messages, app) and BTC PIN (Bitcoin, device buttons only) · a Vault PIN with the Vault, in testingChecked inside the SE051 · delays between wrong tries grow to 24 hours · at most nine tries, three of them from a paired phone · then a PIN-less recovery wipe, and you restore from your words · no duress PIN
Signatures
BIP-340 Schnorr (Nostr) · ECDSA (Bitcoin, BIP-137 messages)Both computed on the vault processor with a host-contributed nonce (anti-exfil), checked by the main processor before release · test report
Firmware integrity
Secure Boot V2, RSA-3072, burned into eFuses at the factoryMain processor runs only Favilla-signed firmware · readout lock on the vault processor set once its firmware is final · no over-the-air updates · flash encryption is not used, because the main chip holds no key · details

Nostr

Signing
NIP-01 events · Manual (default), Selective or AutoSelective auto-signs notes, reactions, reposts, zap requests, relay lists and DM seals, and asks for everything else · set on the KEY, a client cannot override it · relay log-in (NIP-42) is answered automatically
Messages
NIP-44 v2 encryption on every DM that leaves the device · NIP-17 gift-wrap end to endNIP-04 legacy: decrypt always, send opt-in only
Remote signing
NIP-46 for any client supporting Nostr ConnectOne-time app links · make and revoke them from your phone · the controlling pairing changes only on the KEY
Zaps
NWC (Nostr Wallet Connect) to your own node or a wallet serviceThe KEY signs the zap request; the app sends the NWC payment
Client
Full Nostr client served from the device itselfLocal network or the KEY's own hotspot · remote app for NIP-46 · publishes to our relay (relay.favillakey.io), which fans out to public relays; replace it with your own

Bitcoin

Wallet
BIP-84 single-sig · BIP-48 P2WSH multisig cosignerUp to 4 registered multisig wallets, up to 7 cosigners each · Bitcoin exists only in the Bitcoin door, opened with the BTC PIN after a power cycle · no balance, addresses or Bitcoin API in the Nostr door · Taproot not supported
Signing
PSBT · every input re-derived and verified, every change output checked against the registered descriptorThe main processor parses and checks the PSBT and computes each sighash; the vault processor recomputes it and signs · inputs it cannot prove are yours come back unsigned · our recommendation: multisig, so the KEY never spends alone
Airgap
ur:crypto-psbt animated QR: camera in, screen out, no networkValidated round trip with Sparrow and BlueWallet on mainnet, single-sig and multisig · BBQr not supported

Passkeys & inheritance

Passkeys
FIDO2 / WebAuthn over USB or Bluetooth (CTAP2) · in testing, in the firmwareDevice-bound passkeys made inside the SE051, or restorable passkeys derived from your recovery words and signed on the vault processor · discoverable passkeys supported · each login needs a press on the KEY with the site name shown · Vault door with its own PIN and no Wi-Fi · details
Favilla Vault
Passwords and 2FA codes · in testing, in the firmwareRecords sealed by the vault processor · typed in as a USB or Bluetooth keyboard, or handed to the Favilla iPhone app for AutoFill · 2FA (TOTP) codes computed on the vault processor, the secret never leaves it · weak, reused and breached password check (k-anonymity, the password is never sent)
Emberwill
Inheritance for your bitcoin · in testing, first version on developer unitsPre-signed payout held on the vault processor, released after a silence you choose · Bitcoin blocks as the clock, proof of work checked on the vault processor · run on mainnet on our bench · how it works

Physical

Enclosure
CNC-machined 6061 aluminium, bead-blasted and anodised · 2 mm glass back panelPlanned finishes for later runs: stainless steel, copper, solid brass
Dimensions
55 × 55 × 17 mm
Weight
65 g
Made
Designed and assembled in Australia

And

CIPHER
Skill-based hash-mining game, built into the firmwareSigned scores, weekly sats draw · the full guide
Price
To be announced before launch
Availability
Developer units first, then the first production run · dates go to the early-access list first
